Environmental Factors

Regardless of the type of joining method ultimately selected, one of the most important considerations is the environment or surroundings to which the joint and substrate materials will be subjected. Forces acting on the materials and assembly are important to consider. The selected substrates and joining method must carry the maximum expected load, resist fatigue or cyclic stresses and handle the operating conditions experienced during the operation.

Cyclic stresses, particularly slow ones, are more damaging to materials and joined assemblies than a steady stress. The substrates selected for a particular application must be able to resist these loads and stresses after sustained exposure and under any severe environmental factors encountered during the life of the assembly. Heat and humidity are common yet highly damaging environmental factors for many materials and joining methods. Temperature Changes and Thermal Cycling

Temperature changes can have a significant impact on materials and the selected joining method. Consideration must be given to the average operating temperature as well as the potential range of temperatures the assembly may be exposed to during its lifetime.

Figure 34 Understanding the influence of temperature is critical for success

Significant impacts of elevated temperatures are the expansion, softening and relaxation of materials. When designing components, it is critical to observe the capabilities and known resistance of the substrates. For example, heating systems commonly use metallic components because of their ability to withstand high operating temperatures while offering the necessary mechanical performance. Applications that combine the need for rigidity, high strength and high temperature resistance typically limit the use of polymers, rubbers, wood and glass. Understanding how a material will perform under specific or expected conditions is vital.

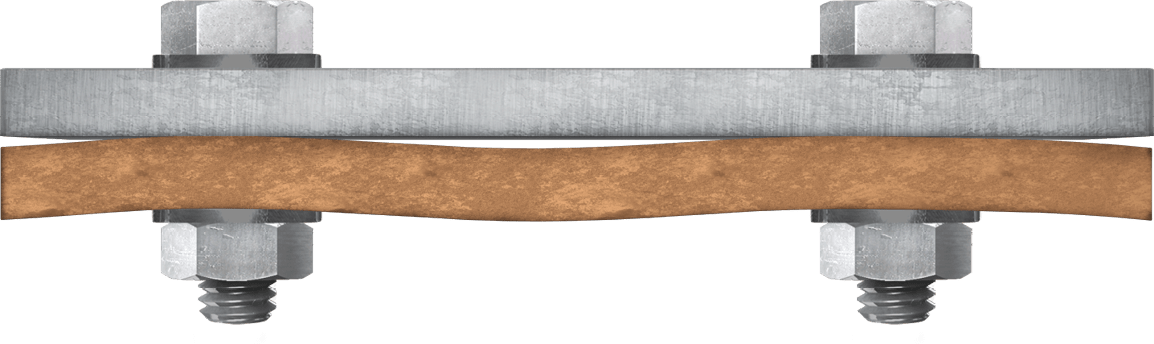

Figure 35 Effects of thermal expansion on dissimilar materials
Table 5 Coefficients of linear thermal expansion of common materials
SUBSTANCE Aluminium Brass Copper Steel Silver Gold
(K^-1) 2.4 x 102 1.9 x 102 1.7 x 102 1.2 x 102v 1.93 x 102 1.3 x 102
SUBSTANCE Platinum Tungsten Glass (Pyrex) Glass (Ordinary) Concrete
(K^-1) 8.6 x 102 0.4 x 102 0.4 x 102 0.9 x 102 1.2 x 102

In addition to the change in the physical properties of substrates at elevated temperatures, it is important to consider the expansion of materials and ensure that the maximum and minimum permissible change in dimensions is within the scope and capabilities of the intended application. Thermal expansion and contraction can have a greater impact and require further consideration when joining dissimilar materials. It is also important to check the differential of thermal expansion for each material and calculate the maximum dimensional change for each part to confirm the feasibility of the proposed material combination. Over time, repeated condition cycles that vary the dimensions and properties of a material can be translated into a permanent change. Metal parts, such as railway tracks, are constantly exposed to external environments and are subjected to repeated thermal cycles and variable conditions. Despite deliberate gaps being left between joint sections of the track to accommodate thermal expansion, they can creep dimensionally and become permanently distorted after repeated exposure to thermal cycles. This cyclic expansion and contraction can cause gaps and misalignments to become apparent and pose significant safety risks. Identifying how critical a part is and understanding the effects of failure play a big part in the selection of materials and subsequent joining methods.

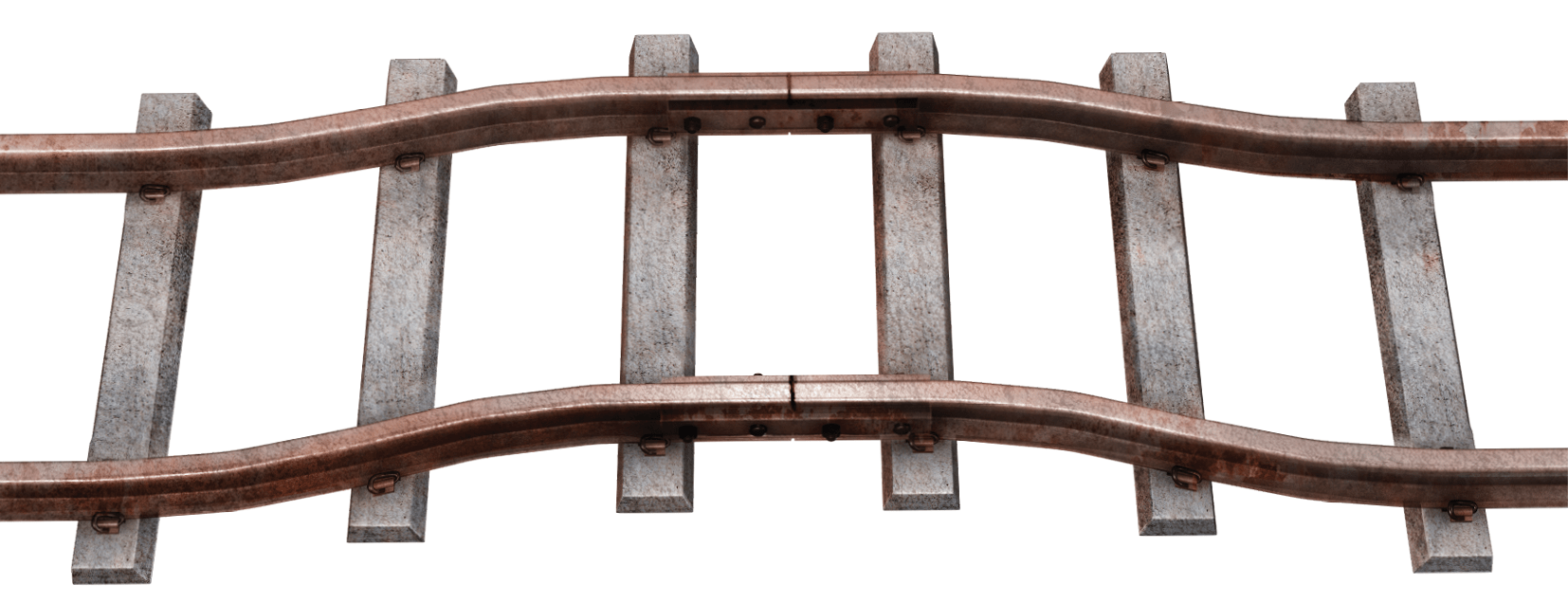

Figure 36 Effects of thermal expansion and contraction on railway tracks

Externally acting forces and applied loads can lead to fatigue, deformation, weakening and degradation of parts and materials, which can be exacerbated or accelerated by extreme high or low heat. As previously noted, high heat can result in expansion, softening and relaxation, while low temperatures will cause materials to contract and shrink dimensionally. Low temperatures will also make substrates brittle and rigid – and harder is not always better. In the same way that applications calling for strong, rigid materials must be able to withstand the changes that occur at high temperatures, an application that requires flexible substrates, i.e. gasketing with rubber O-rings, must be able to accommodate the physical and dimensional changes that occur under low temperatures.
